EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR
EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR

EPS-01 Mark II "G edition" linear power supply for Technics SL-1210 GAE/G/GR

Regular price
€850,00
Sale price
€850,00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more
We currently have 2 in stock.

One of the most important upgrade for the new Technics SL-1200 GAE/G/GR series.

Several reviews reported a "shadowy" image on listening to the new series of Technics turntables: due to mass economy and worldwide voltage differences Technics adopted a SMPS (Switching Mode Power Supply) where the switching frequency is at higher end of audible spectrum. Our new MOSFET power supply finally eradicates this problem and gives all the performances that this stunning turntables deserve.

We have also reported by our customers that original switching power supply induces a very audible noise, especially when you run it with a hi-gain or tube pre-phono: our EPS is the definitive solutions for this hassle.

For this reason Technics itself introduced the second generation Gr turntable that uses an "upgraded" power supply, even if it's still a switching one.
Technics confirmed that the previous PSU introduced noise and they will introduce the new power supply to other turntables models in the future.
As the Gr share the same power supply with G and GAE series it is clear that the original powerr supply is not at the same level of the turntable construction.



Our state-of-the-art power supply is equipped with ultrafast rectifiers provide to feed the turntable with constant DC voltage with very low ripple and a dramatic improvement in audio performance. Generously oversized toroidal transformer (mounted in the external case), Panasonic FC audio grade capacitors, 1% tolerance metal film resistors and selected and matched components with thight tolerances make it one of the best external power supplies that allow the 1200 to express its huge potential.

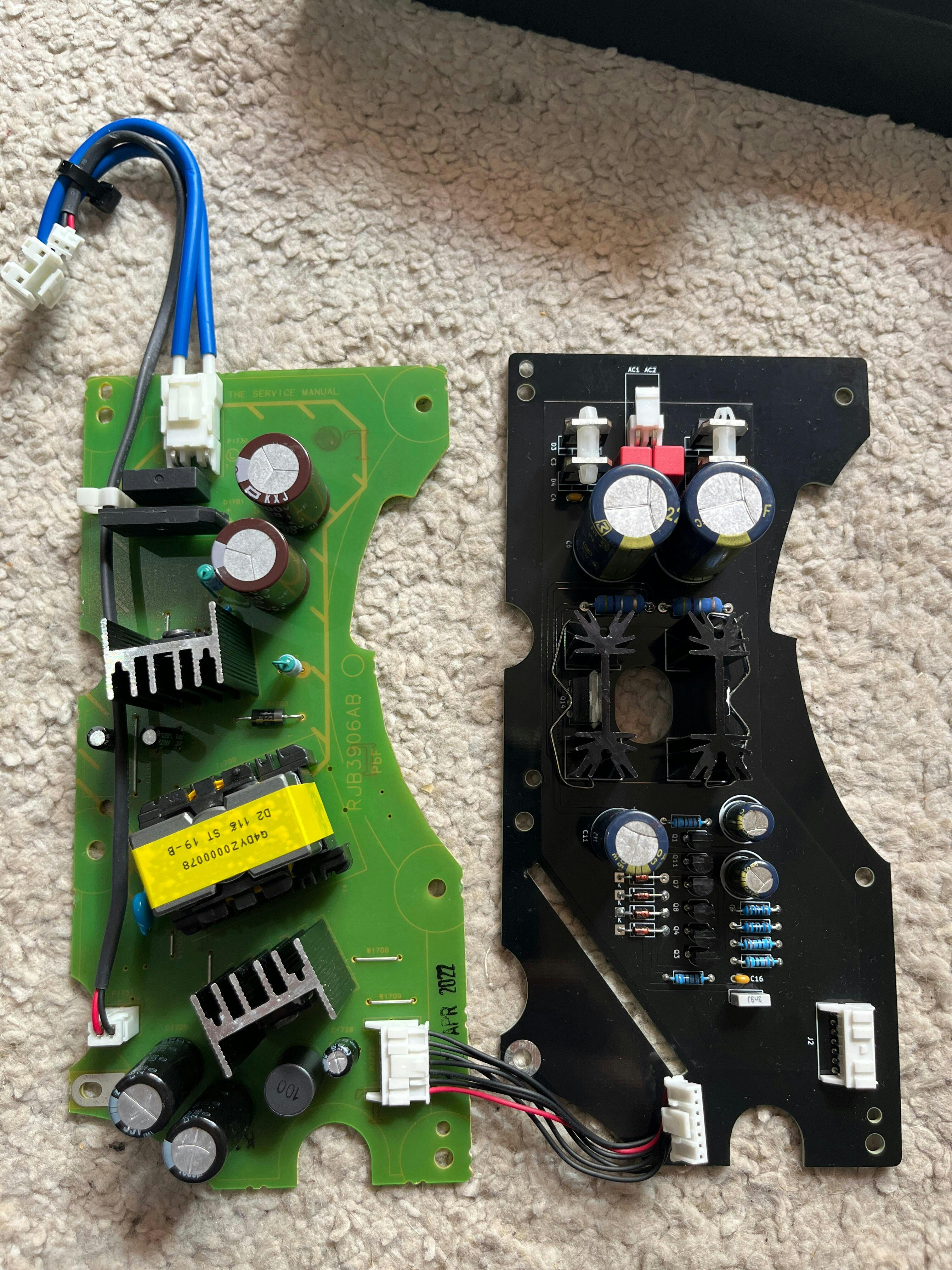

Our custom PCB is a heavy-duty double layer 2oz high quality fiber with ground plane to provides a low impedance ground reference, shields against interference and allows to fit in the original PCB holder of the turntable.

Completely discrete design, no IC's to allows superior performance.

Voltage calibration is made by military grade components, not via a cheap trimmer as in other product poorly designed and not intended for Technics turntables from origin.

NO SOLDERING REQUIRED!    Just use the supplied screwdriver.

The change is fully reversible and does NOT require any invasive modifications to the layout of the circuits such as traces cuts or external jumpers.

Aesthetics remains the same as our kit use original connections and screws.

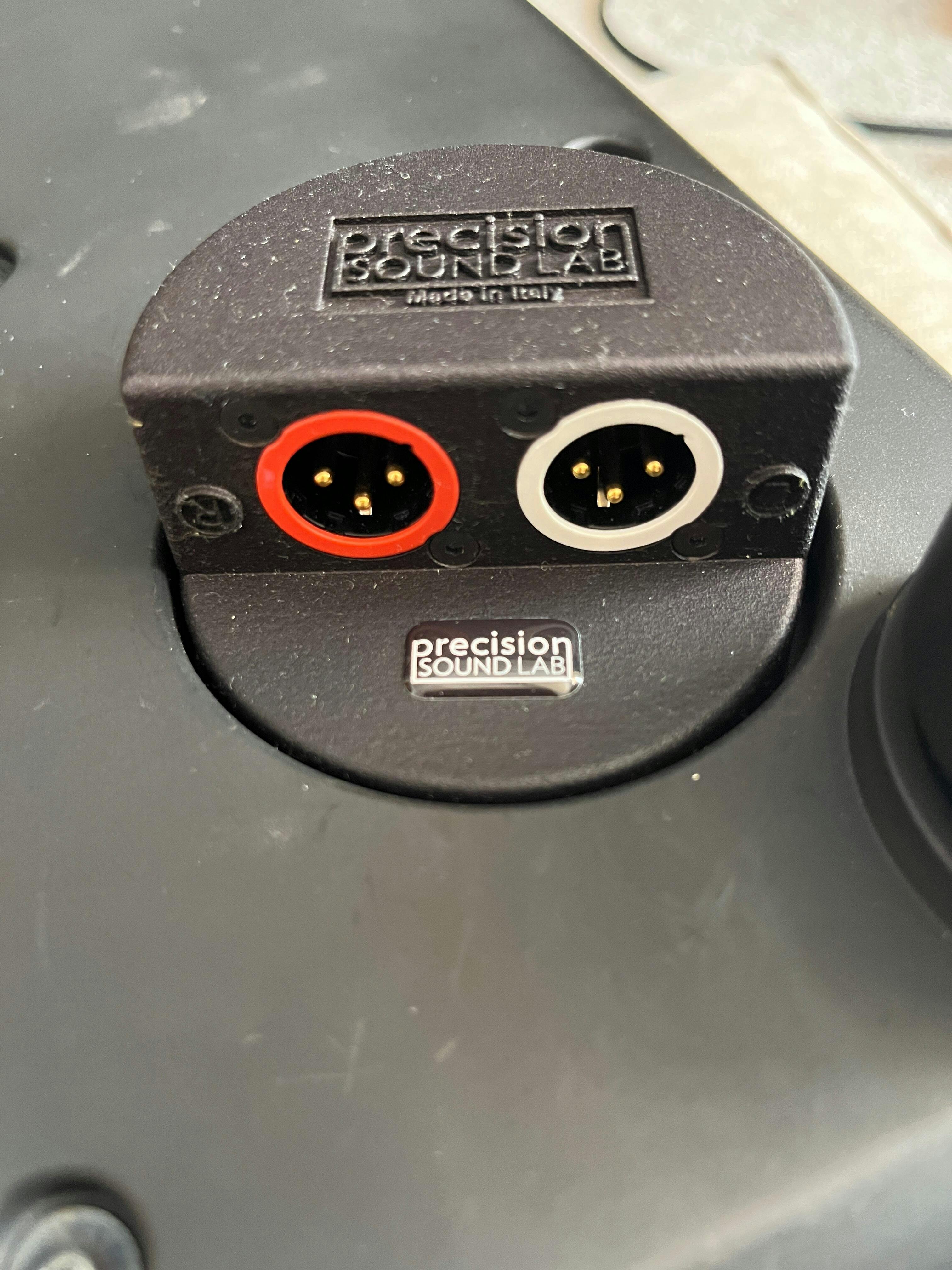

Upgraded version with hi-grade power connectors with gold contacts and braided sheath covered cable.

Opposite to other cheap external PSU our kit maintain regulation board inside the turntable to allow quick regulation change, and we do not use cheap design based on LM317 or similar poor regulation board.

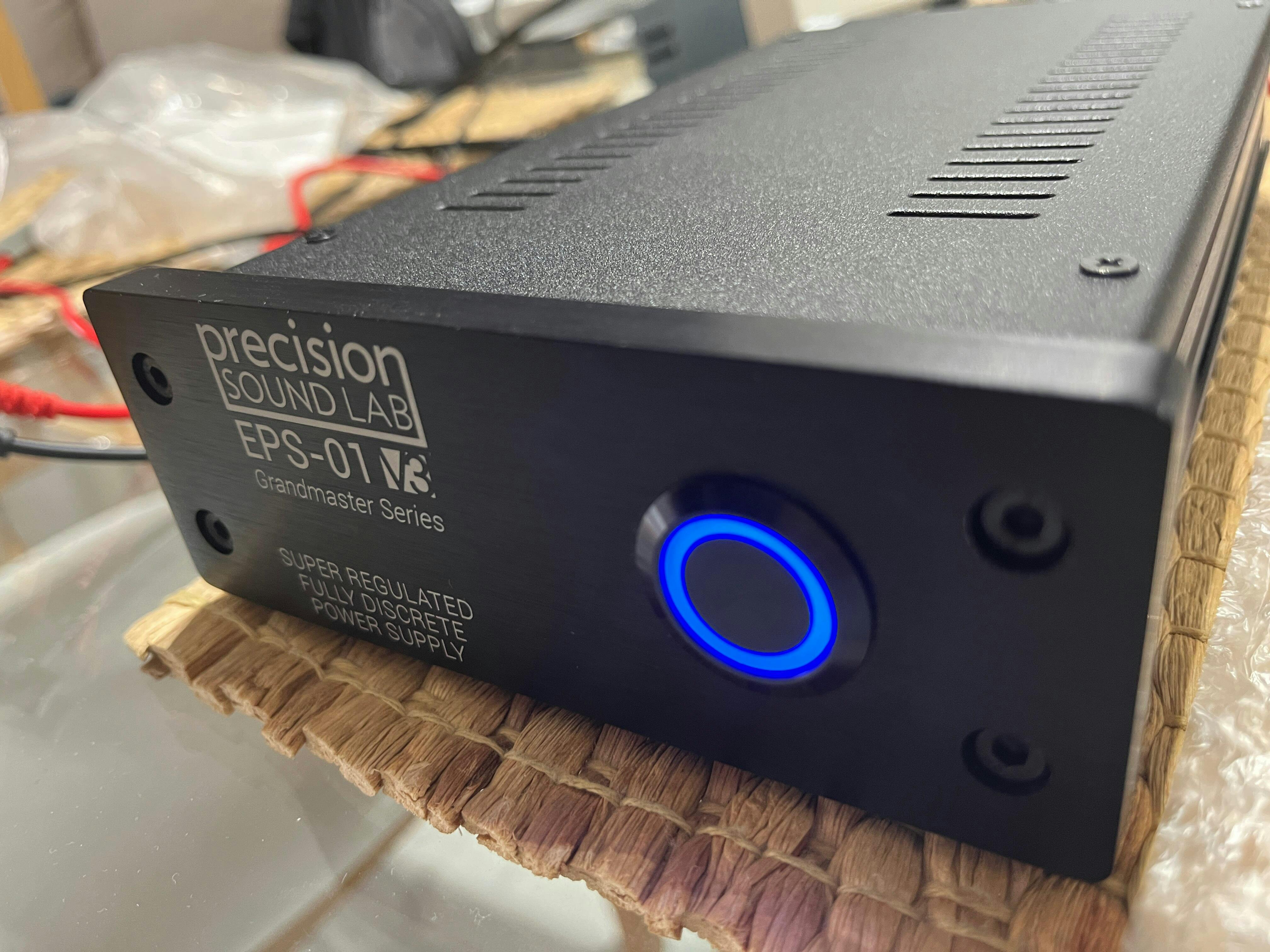

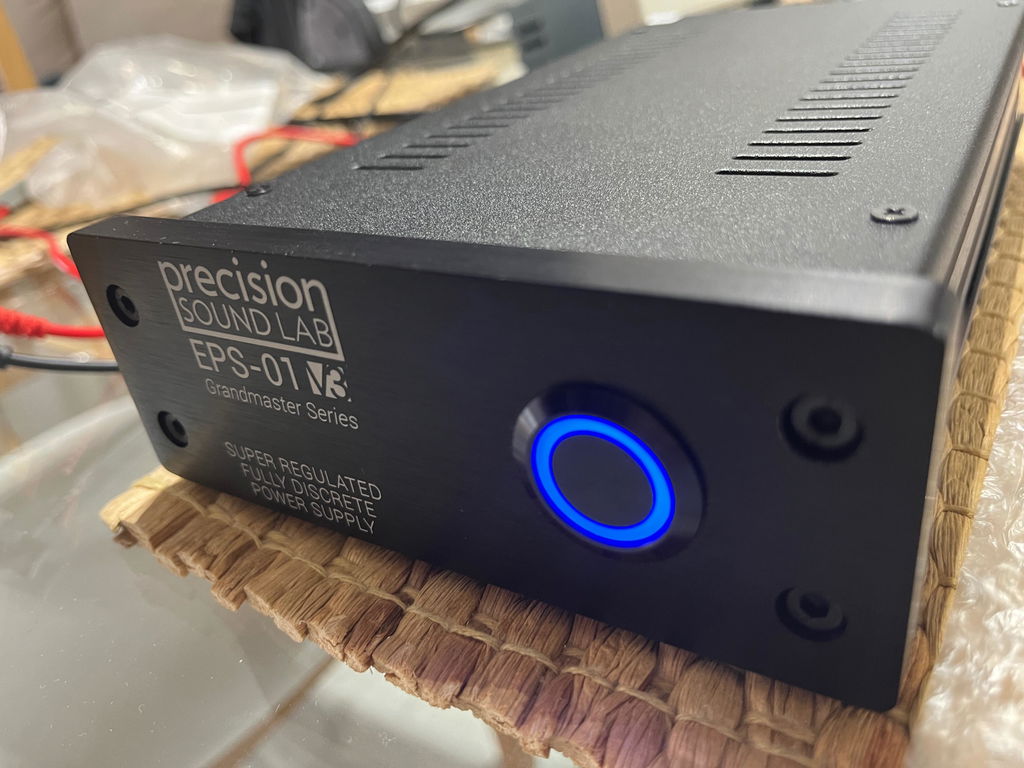

External unit have a massive 10mm thick aluminum front panel, clear anodized to perfectly match the look of your SL-1200GAE/G.

With our EPS power supply the deck will maintain all the original functions as strobe light, 33/45rpm switch and pitch control adjust.

PATENT PENDING

Click here for downloadable PDF assembly instructions (English).

Click here for youtube video assembly tutorial.

If your country is not listed in the shipping option please contact us at info@precisionsoundlab.com or via shopify.

5 YEARS WARRANTY (erratic installation damages are not covered)

Made in Italy,  as all the products made by Precision Sound Lab.

Code: EPS-01 Mark II G edition

Weight: Internal Unit 180gr. - External Unit 1,7kg

Umbilical cable length: 120cm

Sales Unit: single piece

List price VAT included: 850,00 EUR

-----------------------------------------

Superalimentazione esterna a MOSFET per Technics SL-1200 serie GAE/G/GR

Una tra le modifiche più importanti per un utilizzo audiophile del nuovo giradischi SL-1200 GAE/G/GR di casa Technics.

L'adozione sulle nuove serie dell'alimentazione switching (SMPS) per economie di produzione industriale e la necessità di avere una alimentazione unica adatta alle varie tensioni presenti nel mondo fanno dell'alimentazione originale un punto debole delle nuove splendide macchine di casa Technics.

Prove dei nostri clienti indicano che l'alimentazione switching originale induce una notevole quantità di rumore quando il giradischi viene usato con pre-phono ad alto guadagno o valvolari, la nostra EPS è in questo caso la soluzione definitiva.

La nostra alimentazione allo stato dell'arte è equipaggiata con rettificatori ultraveloci provvedono ad alimentare il giradischi con tensione in corrente continua costante, con ripple bassissimi e un drammatico miglioramento delle prestazioni audio. Trasformatore toroidale ospitato nell'unità esterna generosamente sovradimensionato, condensatori Panasonic serie FC "audio grade", resistori a film metallico con tolleranza 1% -assieme al resto della componentistica scelta ed accoppiata con tolleranze minime- ne fanno una delle migliori alimentazioni esterne che permettono al 1200 di esprimere tutto il suo altissimo potenziale nella riproduzione audio analogica.

Montaggio facile e rapido, necessita soltanto di un cacciavite, incluso nel kit.

Nessuna modifica all'estetica originale.

Circuitazione completamente a componenti discreti, nessun circuito integrato presente.

Le nostre schede elettroniche custom sono di nostro disegno, con piani di massa integrali e spessore rame da 2oz (il doppio delle schede commerciali), pensate e realizzate per mantenersi ins servizio decenni senza nessun decadimento della qualità o danneggiamenti.

Versione migliorata con impiego di connettori di alimentazione "push-pull" ad alte specifiche con contatti in oro e cavo di collegamento rivestito di guaina antitaglio.

La regolazione del voltaggio è stabilita da componentistica di precisione di grado militare e non da un economico potenziometro come in altri prodotti non studiati specificatamente per il Technics 1200.

NESSUNA NECESSITA' DI SALDATURE PER IL MONTAGGIO.

La modifica è totalmente reversibile e NON prevede nessun tipo di modifica al layout dei circuiti come ad esempio tagli delle piste o ponticelli esterni. Al contrario di altre alimentazioni esterne presenti sul mercato il nostro kit prevede la scheda di regolazione interna alla macchina, inoltre il design a componenti discreti non è paragonabile ad altri alimentatori basati su LM317 o similari che offrono prestazioni molto più scadenti.

L'unità esterna presenta un pannello anteriore in alluminio massiccio da 10mm, anodizzato naturale per accoppiarsi perfettamente al look del vostro SL-1200GAE/G.

Tutte le funzioni del giradischi rimangono inalterate (luce strobo, 33/45, pitch fader etc.)

5 ANNI DI GARANZIA SUL PRODOTTO (sono esclusi danni derivanti da errato montaggio)

PATENT PENDING

Clicca qui per le istruzioni di montaggio in PDF in Italiano.

Clicca qui per il video tutorial su Youtube.

Made in Italy,  come tutti i prodotti Precision Sound Lab.

Codice: EPS-01 Mark II G edition

Pesi: Unità interna 180gr. - Unità esterna 1,7kg

Lunghezza cavo di collegamento: 120cm

Unità di vendita: pezzo singolo

Prezzo listino al pubblico IVA inclusa: 850,00 euro.
